Installation of Internal Drain Detail

In this Permaroof installation guide, we will demonstrate the installation process for internal drain detail using the EPDM drain outlet accessory.

This method effectively seals and protects internal drain details from water ingress.

Once installed correctly, the EPDM drain detail leaves you with a long-lasting, high performance result, perfect for EPDM flat roofing systems.

Step One

The EPDM membrane should be fully adhered to the substrate and the membrane cut away to reveal the drain hole.

Step Two

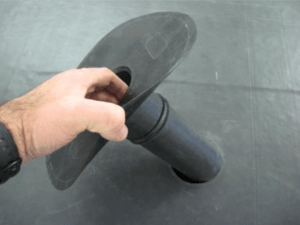

Insert the drain outlet…

Step Three

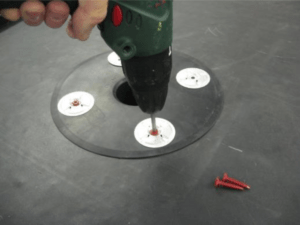

Mechanically fix the outlet to the roof deck using V-plates and All-purpose fasteners.

Step Four

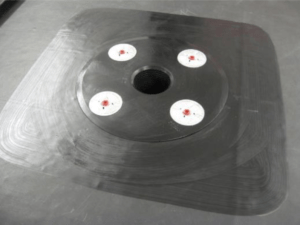

Apply Quickprime plus to the area a minimum of 100mm beyond the perimeter of the flange.

Step Five

Wait for the Quickprime plus to become tacky.

Step Six

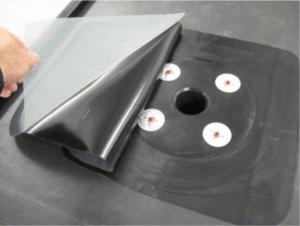

Prepare a piece of SA flashing a minimum of 75mm larger than the drain outlet diameter and apply to the primed area, ensuring that Quickprime Plus is visible all around the SA flashing.

Step Seven

Apply the silicone roller for total adhesion across the entire installation area.

Step Eight

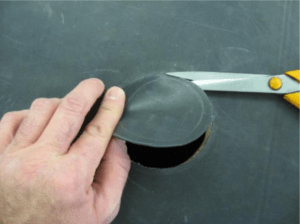

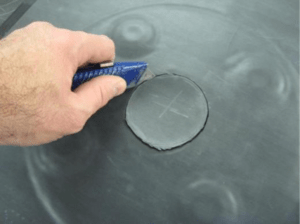

Remove the SA flashing part that covers the outlet by cutting a hole around its diameter.

Take care not to cut into the drain outlet itself.

Step Nine

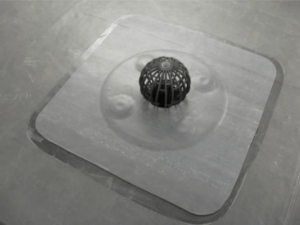

The finished detail with leaf guard inserted.

Document Ref: Internal-Drain-Detail-il38_1
